SKU: M-122850-DSP1 DSP-1 Loudspeaker Protection

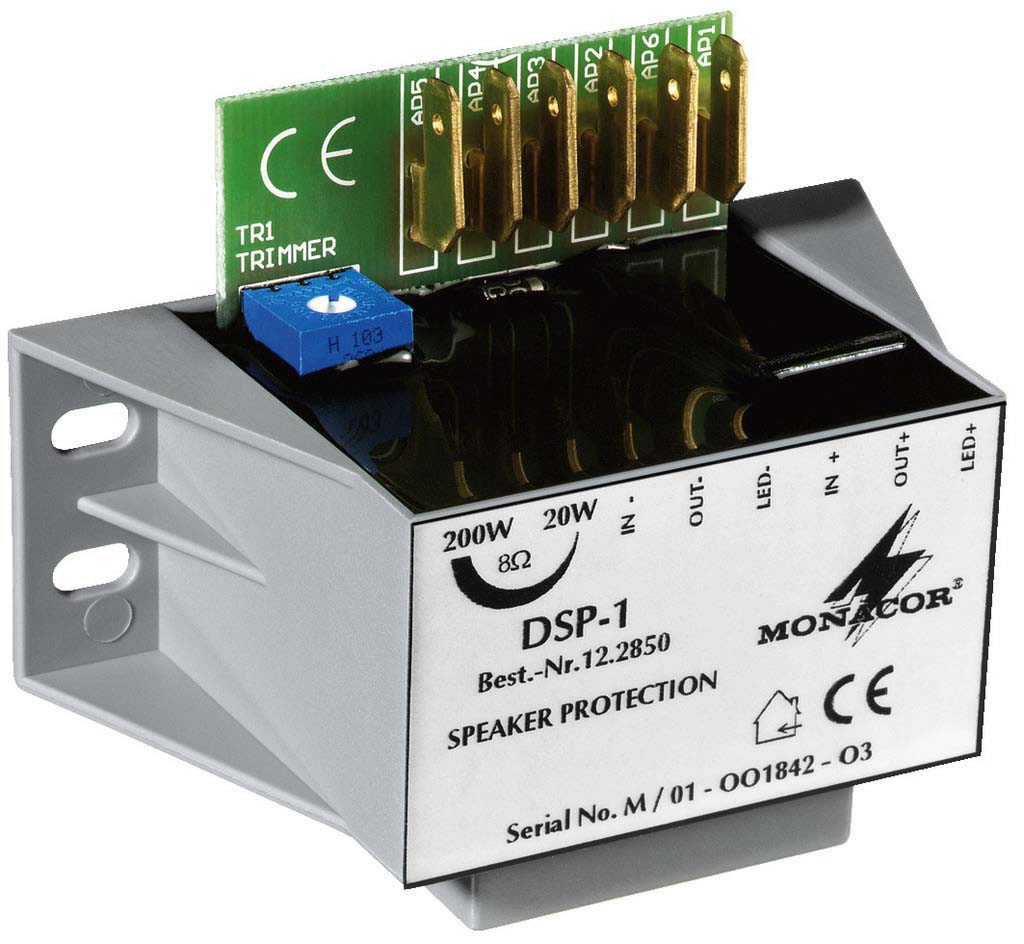

DSP-1 - Monacor Loudspeaker Protection Module

Number: 12.2850

Mono Speaker Protection Module

• To protect midrange speakers and tweeters of all impedances in case of overload by excessive level peaks
• Maximum admissible power can be adjusted between 20W and 200W
• Can be mounted into existing systems
• Safe speaker protection for satellites and other small full range speakers in the entire audio range from 20-20,000 Hz
• Audio quality not affected below threshold
• Module is automatically reset after eliminating the power peaks

Specifications:

• Power Range Adjustment 8 Ohm: 20 W to 200 W
• Power Range Adjustment 4 Ohm: 40 W to 400 W
• Channels: 1 (mono)
• Recommended Ambient Temperature: 0 to 40 °C
• Dimensions: 75 × 42 × 50 mm (Approx)
• Power supply: Not Required
• Dimensions (W x H x D): 482 x 45 x 50 mm (approx.)
• Weight: 120g (approx.)

 Download the Instruction Manual (272KB)
