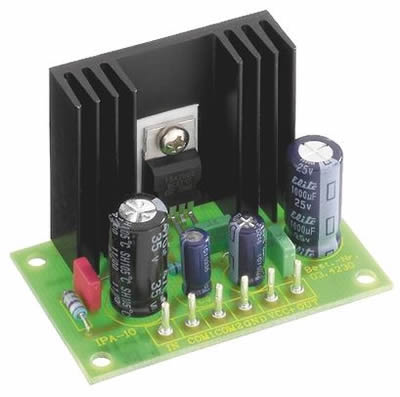

Amplifier Module 7.5W

Our Price: AU $55.00 inc. GST each
AU $50.00 export price each

Product Code: M-034230-IPA10

This item is listed in the following categories:
Monacor Parts, Amplifier Modules, Amplifier Modules

Quantity in your cart: None

Quantity:

Shipping Calculator: add to cart to first!

IPA-10

Number: 03.4230

HiFi power amplifier modules,
Mono amplifier for projects, small single systems, industrial and much more. A 12V DC voltage (max. 18V DC current ) is required for operation.

Features

Short-circuit proof
Thermic overload protection
Reliable power amplifer IC technology with low THD

Instruction Manuals
PDF files use Adobe Acrobat® Reader®, which is available here if required.

Specifications:

RMS output power: 4.5W RMS / 4 Ohm
Music output power: 7.5W MAX / 4 Ohm
THD: 0.15% / 4.5W
Output impedance: 4 Ohm
Frequency range: 40-20,000Hz
Input impedance: 150kOhm
Input voltage: 50mV
S/N ratio: > 70dB
Quiescent current: 50mA
Power supply: 8-18V DC current / 0.55A
Dimensions: 59 x 41 x 37mm
Weight: 40g
