SKU: M-012670-VRA141M50 Rotary Pot Mono 50k Ohm

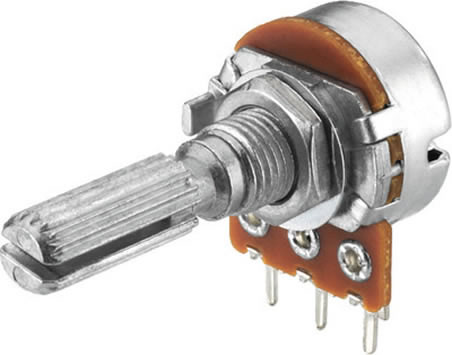

VRA-141M50 - 50 kOhm Mono Potentiometer

Number: 01.2670

Potentiometer mono 50 kOhm - With slotted 6mm shaft, for standard 18-tooth push-on knobs, with nut for fixing and solder connections for PC boards or wire. Suitable for electronic projects, repairs and general purpose use.

Monacor potentiometer VRA141M50 dimension diagram (approx.)

Technical Specifications:

• Resistance: 50k Ohm
• Characteristic: log
• Power rating: 0.1W
• Insulating resistance: < 100 MOhm / 500V DC
• Test voltage: 500V / 1 min. (approx.)
• Tracking error: ±3dB, 0 / -40dB
• Rotating angle: 300° ±5°
• Clicks: 41
