Hidden Radio System

Concealed Radio System

A concealed or hidden radio is the perfect choice for you if you don't want to actually see the radio in your car and still have the benefits of a modern radio and all its features. Perhaps you are looking to replace an old radio but don't want all the flashing lights and shiny panels in your subdued dashboard. This means you can keep the existing or original radio, even if it doesn't work! It allows you to update your radio without changing the look and feel of the original car, or cutting new holes in the dash when you really don't want to do that! This unit is an AM / FM stereo with a remote control, plus it has a USB MP3 / WMA flash drive player and an iPod dock connector for direct control via the interface built into the tuner / amplifier unit.

The concealed radio is an ideal replacement for old Becker, Blaupunkt, Telefunken and other classic radios, but also good for hot rods, street rods, custom cars, Fords, Holden, Chevrolet, Pontiac, Cadillac, Valiant, restorations, old timers and many more, in fact any classic car you could think of! It is your secret radio...

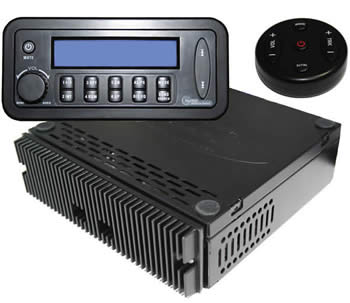

Concealed Radio System with most of the parts displayed.

You can use this radio almost any vehicle, new, old or vintage! This includes most foreign and domestic vehicles, especially classic cars from the 50's, 60's, 70's, 80's etc. as well as Mercedes-Benz, BMW, Ferrari etc. Also good for upgrading new car radios that don't have the features you want.

Features:

• AM / FM Stereo
• 200 Watts Max: 4 x 50W
• RF Remote control (radio frequency no line of sight required, up to 12m / 40' range line of sight approx, depending on conditions and surroundings)
• USB MP3 / WMA flash drive player
• iPod direct control interface (built into tuner / amp unit) with 210cm / 7' approx. iPod docking cable included - iPod not included
• Alpha-numeric LCD display shows artist / song titles for USB and iPod
• Direct CD changer control (6 CD changer optional)
• Auxiliary audio input
• 4 Channel 3 Volt RCA pre-outs (for optional amplifiers though note unit has a 4 channel amplifier built-in)
• Subwoofer pre-out (for optional subwoofer amplifier)
• Electronic volume, bass, treble, balance and fader controls
• 5 Selectable iEQ (intelligent equalisation) Curves – pop, jazz, classic, beat and rock
• Zero memory current draw (will not drain car battery when unit not in use)
• 24 Station pre-sets (18 FM / 6 AM)
• 3m / 10' approx. cable from LCD control panel to main tuner / amplifier unit
• Power antenna / remote 12V trigger lead
• Blue LED illumination on buttons and LCD display with contrast control
• LCD flush mount trim bezel included
• LCD swivel mount bracket included
• 2 Year Warranty

Specifications:

• FM Radio
  • Frequency Coverage (Australia / NZ / Europe): 87.5 to 108 MHz
  • Frequency Coverage (USA): 87.5 to 107.9 MHz
  • Sensitivity (S/N=30dB): 4ìV
  • Image Rejection: >45 dB
  • Stereo Separation: >25 dB
• AM/MW
  • Frequency Range (Australia / NZ / Europe): 522-1620 kHz
  • Frequency Range (USA): 530-1710 kHz
  • Sensitivity (S/N=20dB): 36 dB
• Tone Controls:
  • Bass (at 100 Hz): ±10 dB
  • Treble (at 10 kHz): ±10 dB
• General
  • Operating Voltage: DC 12 Volts
  • Grounding System: Negative Ground
  • Speaker Impedance: 4-8 ohms per channel
  • Power Output: 50W x 4
  • Current Drain: 15 Ampere (max.)
  • Commander Dimensions: W x D x H: 14 x 2.55 x 5.1cm (5.5" x 1" x 2") approx.
  • Tuner/Amp Dimensions: W x D x H: 17.15 x 16.5 x 5.1cm (6.75" x 6.5" x 2") approx.

How it works:

The main tuner / amplifier unit is usually hidden under a seat, inside the glove box or behind the dash. A 3m cord from the tuner / amp plugs into a LCD display. The system can be operated with the included RF (radio frequency remote.), it does not need line of sight like IR (infra-red) remotes do. Included with the system is a flush mount bezel for console or dash mounting. The small dimensions of the flush mount system allow you to install the LCD display almost anywhere. The LCD also comes with a bracket mount for easy installation in the glove box, under the dash, in the ashtray, sun visor, console, or wherever you choose! Since its only about 2.5cm deep, it's especially handy for applications where there may be wiring or ducting routed behind the panels you wish to utilise for mounting.

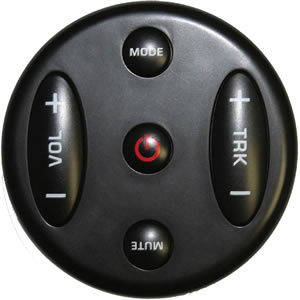

Hidden radio RF remote control.

Box Contents:

• Main tuner / amp unit
• RF remote control
• RF receiver
• iPod docking cable (210cm / 7' approx.) - iPod not included
• Cable from LCD to tuner amp (300cm / 10' approx.)
• Flush mount bezel
• Swivel bracket

Note: USB port is on a 30cm / 12" (approx.) lead coming of the back of the main tuner / amplifier unit. As you can see there are many connections but you don't have to use them all. This system has been made as flexible as possible so you can make your sound system as elaborate as you want.

iPod Compatibility List:

• iPod 1G - Not Supported
• iPod 2G - Not Supported
• iPod 3G - Supported
• iPod Mini - Supported
• iPod 4G - Supported
• iPod Photo - Supported
• iPod Nano - Supported
• iPod 5G (Video) - Supported
• iPod Touch - Not Supported
• iPhone - Not Supported
• iPod Classic all versions - Supported
• Charging not supported for models after September 2008 due to change in iPod charging system
