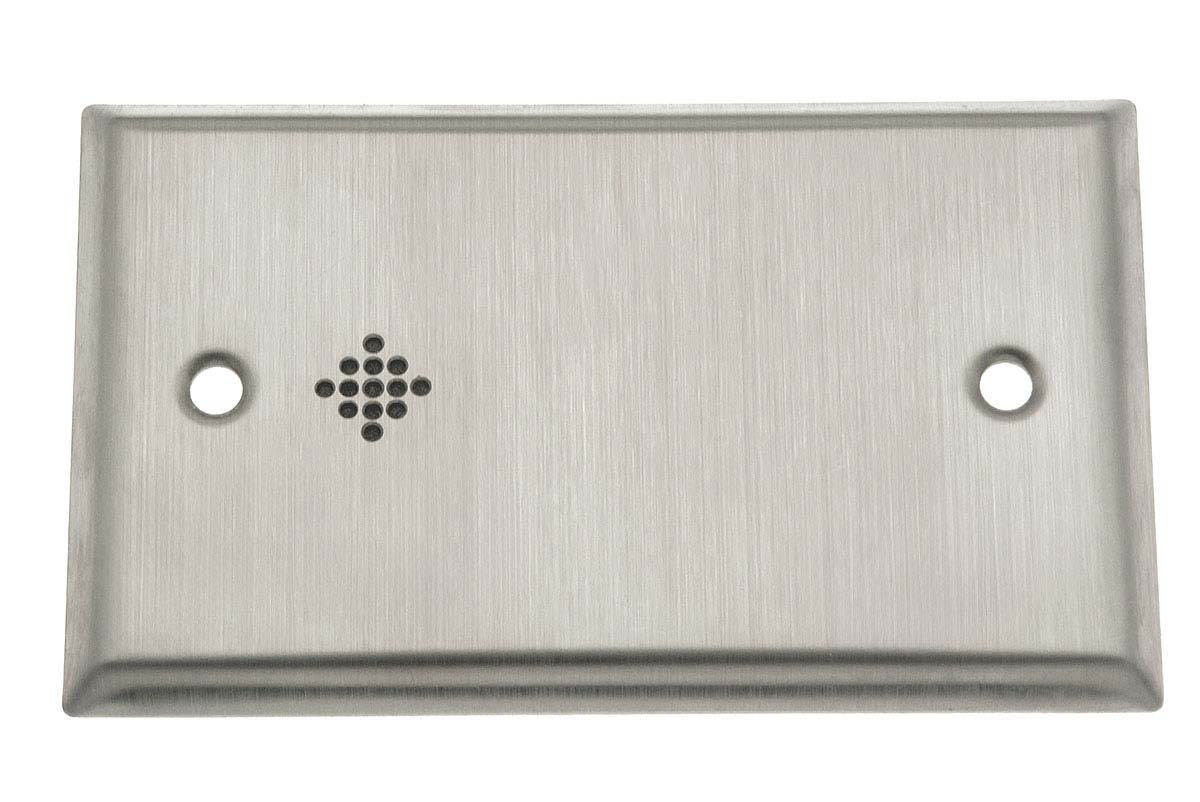

Flush Mount Tamper-Resistant Microphone SM1-TR

ETS Stainless Steel, Flush Mount, Tamper Resistant Omni-directional Microphone SM1-TR

High performance, omni-directional pre-amplified microphone for use in applications where vandalism is of concern. Electret element is mounted in a special housing which is out of reach to objects inserted into the sound holes. Built in limiter circuit automatically lowers the output level during loud sound intervals. Stainless steel plate mounts flush or on a single gang electrical box.

All ETS microphones are optimised for the voice frequency band by trimming the preamplifier's high and low frequency response to 200Hz-16kHz. The result is higher intelligibility of the sound source and lower levels of background noise.

• Omni-directional 7.6m (25') pickup pattern (approx.)
• Low noise MOSFET pre-amplifier.
• Adjustable gain.
• 200Hz-16kHz Frequency response.
• Line level unbalanced output.
• Limiter selectable on / off.
• Treble boost selectable on / off.
• 3 position Euro-style connector makes cable termination fast and clean.
• Power: 12VDC @ 10mA
• On-board voltage regulator and RFI filtering.
• Stainless steel plate mounts flush or on a single gang electrical box.
• Dimensions: L 11.4cm x W 6.8cm x H 2.8cm; (L 4.5" x W 2.7" x H 1.1" ) - approx.

Download Product Specification Sheet (PDF)
Download Installation Instructions (PDF)
