DACT 5x8 Selector Switch Wire

8-Pole Input Selector Switch

Very compact 5-position audio input selector switches (switches between up to 5 input sources). All contacts and connections are gold plated for long lifetime even in the most challenging environments. Same basic construction and size as the DACT CT2 audio attenuators and CT4 balance controls. Ideal together with DACT’s CT2 stepped attenuators for active or passive preamplifiers.

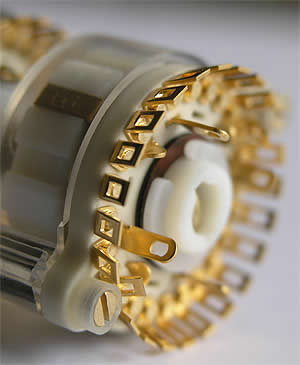

DACT CT3 wire lug connections.

Features:

• 8-pole switch.
• Solder lugs for wire connections.
• Non-shorting.
• Switches up to either:
  • 4 channels with signal and ground simultaneously.
  • 8 channels, signal only.
  • 4 balanced channels, + and - signal only (excl. ground).
  • 2 balanced channels, +/- signal and ground for both channels.

Datasheet:

Download DACT CT3 Datasheet (200 KB)
